High-performance BLE Beacon · Asset Tracking

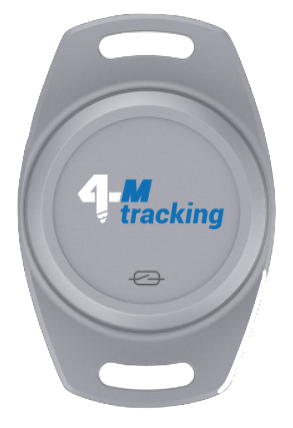

Asset TagAT-1

A long-range, ruggedized Bluetooth beacon for tracking assets, indoor navigation, wayfinding and proximity marketing. With a replaceable CR2477 cell lasting up to 4 years and an IP67 enclosure, the Asset Tag deploys anywhere — factory, warehouse or building.

BLE 5.1 up to 160 m IP67 iBeacon / Eddystone 3-axis G-sensor up to 4 yrs · CR2477

Powered by 4MTracking

Live asset visibility across every zone

Pair Asset Tags with 4MTracking anchors and gateways for real-time, last-known position of assets, vehicles and people — indoors and out.

4Mining · Asset Tag AT-1 Assets tracking · indoor navigation · wayfinding · proximity marketing · www.4-mining.com

Technical Specifications

Smart hardware & software that lets the Asset Tag join your solution easily.

Specification	Asset Tag AT-1
General
Main chip	Nordic nRF52811
Bluetooth	BLE 4.2 (hardware compatible with 5.1)
Range*	Up to 160 m
Dimensions	70 × 46 × 21 mm
Weight	33.5 g (with battery)
Material / Color	ABS+PC · Grey
Waterproof	IP67
Installation	Hang · Sticker · Screw
Button / LED	Inner mechanical button · single red LED
Sensors	Hall-effect magnetic switch · 3-axis accelerometer (optional)
Power
Battery	Replaceable 1000 mAh CR2477 lithium coin
Average current	21 µA (28 µA with G-sensor)
Lifetime	Up to 4 years (3 years with G-sensor)
Environment
Operating temperature	−20 °C … +60 °C (−40 … +85 °C customizable)
Humidity	0 % … 95 % (non-condensing)
Certifications	FCC · CE (RED/LVD/EMC) · REACH · RoHS

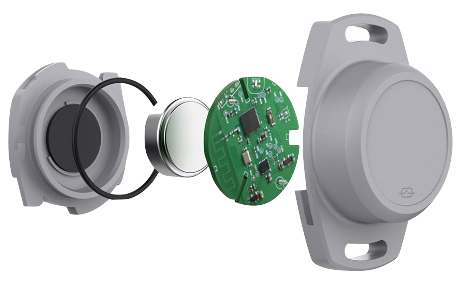

Asset Tag AT-1 battery replacement — exploded view — **Replaceable CR2477 battery.** Open the screw-down enclosure, replace the 1000 mAh coin cell and reseal — up to 4 years of runtime per cell.

*Range tested in open area with no obstacles. Default: 1 active slot, 1000 ms ADV interval, 0 dBm Tx power.

4Mining · Asset Tag AT-1 FCC · CE · RoHS · REACH · www.4-mining.com

Functions & Applications

Functions

Multi-protocol advertising, smart sensing and easy configuration.

Multi-protocol advertising — Apple iBeacon, Google Eddystone (UID/URL/TLM) and sensor-data broadcasting.
Up to 6 active slots — broadcasts different advertising packets simultaneously.
Motion detection — 3-axis G-sensor detects movement and adapts the advertising status and data.
Power-saving mode — motion detection puts the beacon to sleep when idle to extend battery life.
Configuration app + SDK — iOS & Android app configures all parameters; open SDK for custom development.
Firmware update — Nordic DFU OTA or J-link.

Applications

Asset Tracking

Trace tools, equipment and goods across factory and warehouse.

Indoor Navigation & Wayfinding

Positioning and guidance inside buildings and facilities.

Proximity Marketing

Trigger context-aware content when users are near a beacon.

Harsh Environments

IP67 ruggedized for reliable indoor and outdoor deployment.
